EN 1.4404 / UNS S31603 / 316L

Material description

AISI 316L is a molybdenum-alloyed austenitic chromium-nickel steel with improved machinability.

The grade is used for a wide range of industrial applications where steels of types ASTM 304/304L have insufficient corrosion resistance. Round bar is supplied in solution annealed and peel turned condition.

Applications

The austenitic stainless steel AISI 316L shows good acid resistance. Material AISI 316L is used in the chemical industry, apparatus engineering, sewage plants and piping industry.

Heat Treatment – Solution annealed and quenched in air or water.

Weldability – Very good.
Chemical Composition (Specific for Plates)

Weight % C Si Mn S P Cr Ni Mo N

Min. 16,5 10,0 2,00

Max. 0,030 0,75 2,00 0,015 0,045 18,5 13,0 2,50 0,10
Reference Standards
General:
- Norsok M-650 Ed.4 qualified manufacturers
- PED 2014/68/EU Annex I section 4.3
- AD2000 W0 (W2/W10)
- NACE MR0175/ISO 15156-3 and NACE MR0103/ISO 17945
Plate, sheet and coil:
- ASTM A240, EN 10028-7, EN 10088-2, EN 10088-4, Norsok M-630 MDS S15
Bar and forging:
- ASTM A276, ASTM A479, ASTM A182, EN 10088-3, Norsok M-630 MDS S14/S17
Other products:
- As per applicable ASTM and/or EN standards and Norsok M-630 MDS
- Plates available as Outokumpu Circle Green® with the lowest carbon footprint in the industry

Mechanical Properties (Typical)

Yield strength Rp0.2, MPa	Yield strength Rp1.0, MPa	Tensile strength Rm, MPa	Elongation [%]	Hardness [HB]
PLATE CR (COIL)	≥ 240	≥ 270	530 – 680	≥ 40	≤ 217
PLATE HR (COIL)	≥ 220	≥ 260	530 – 680	≥ 40	≤ 217
PLATE (QUARTO)	≥ 220	≥ 260	520 – 670	≥ 45	≤ 217

Stocked products and dimensions

Cold Rolled Plate Stock (Finish 2B)

MEASUREMENTS	KG/PLATE
0,5 x 1000 x 2000 mm	8.0
0,6 x 1000 x 2000 mm	9.6
0,7 x 1000 x 2000 mm	11.2
0,7 x 1250 x 2500 mm	17.5
0,8 x 1000 x 2000 mm	12.8
0,9 x 1000 x 2000 mm	14.4
1 x 1000 x 2000 mm	16.0
1 x 1250 x 2500 mm	25.0
1 x 1500 x 3000 mm	36.0
1,25 x 1000 x 2000 mm	20.0
1,25 x 1250 x 2500 mm	31.3
1,25 x 1500 x 3000 mm	45.0
1,5 x 1000 x 2000 mm	24.0
1,5 x 1250 x 2500 mm	37.5
1,5 x 1500 x 3000 mm – Available as Circle Green	54.0
2 x 1000 x 2000 mm	32.0
2 x 1250 x 2500 mm	50.0
2 x 1500 x 3000 mm – Available as Circle Green	72.0
2 x 2000 x 4000 mm	128.0
2 x 2000 x 6000 mm	192.0
2,5 x 1000 x 2000 mm	40.0
2,5 x 1250 x 2500 mm	62.5
2,5 x 1500 x 3000 mm	90.0
3 x 1000 x 2000 mm	48.0
3 x 1250 x 2500 mm	75.0
3 x 1500 x 3000 mm – Available as Circle Green	108.0
3 x 2000 x 4000 mm	192.0
3 x 2000 x 6000 mm	288.0
4 x 1500 x 3000 mm – Available as Circle Green	144.0
5 x 1500 x 3000 mm – Available as Circle Green	180.0
6 x 1500 x 3000 mm – Available as Circle Green	216.0

Hot Rolled Plate Stock (Finish 1/1D)

MEASUREMENTS	KG/PLATE
4 x 1000 x 2000 mm	64.0
4 x 1250 x 2500 mm	100.0
4 x 1500 x 3000 mm	144.0
4 x 2000 x 4000 mm	256.0
4 x 2000 x 6000 mm	384.0
5 x 1000 x 2000 mm	80.0
5 x 1250 x 2500 mm	125.0
5 x 1500 x 3000 mm	180.0
5 x 2000 x 4000 mm	320.0
5 x 2000 x 6000 mm	495.0
6 x 1000 x 2000 mm	96.0
6 x 1250 x 2500 mm	150.0
6 x 1500 x 3000 mm	216.0
6 x 2000 x 4000 mm	384.0
6 x 2000 x 6000 mm	594.0
8 x 1000 x 2000 mm	128.0
8 x 1250 x 2500 mm	200.0
8 x 1500 x 3000 mm – Available as Circle Green	288.0
8 x 2000 x 4000 mm	512.0
8 x 2000 x 6000 mm	792.0
10 x 1000 x 2000 mm	160.0
10 x 1250 x 2500 mm	250.0
10 x 1500 x 3000 mm	360.0
10 x 2000 x 4000 mm	640.0
10 x 2000 x 6000 mm	990.0
12 x 1000 x 2000 mm	192.0
12 x 1250 x 2500 mm	300.0
12 x 1500 x 3000 mm	442.0
12 x 2000 x 6000 mm	1189.0
15 x 1000 x 2000 mm	248.0
15 x 1250 x 2500 mm	387.0
15 x 1500 x 3000 mm	558.0
15 x 2000 x 6000 mm	1486.0
20 x 1000 x 2000 mm	330.0
20 x 1250 x 2500 mm	516.0
20 x 1500 x 3000 mm	743.0
20 x 2000 x 6000 mm	1982.0
25 x 1000 x 2000 mm	413.0
25 x 1250 x 2500 mm	645.0
25 x 1500 x 3000 mm	928.0
25 x 2000 x 6000 mm	2478.0
30 x 1000 x 2000 mm	495.0
30 x 1250 x 2500 mm	774.0
30 x 1500 x 3000 mm	1114.0
30 x 2000 x 6000 mm	2974.0
40 x 1500 x 3000 mm	1487.0
50 x 1000 x 2000 mm	826.0

Cold Drawn H9 Round Bar Stock

DIA KG/M

3 mm 0.06

4 mm 0.10

5 mm 0.15

6 mm 0.23

8 mm 0.40

10 mm 0.63

12 mm 0.91

13 mm 1.04

14 mm 1.21

16 mm 1.61

18 mm 2.00

19 mm 2.27

Round Bar Stock

DIA	KG/M
20 mm	2.6
22 mm	3.1
25 mm	3.9
28 mm	5.
30 mm	5.6
32 mm	6.5
35 mm	7.7
38 mm	9.1
40 mm	10.1
45 mm	12.7
50 mm	15.7
55 mm	19.0
60 mm	22.6
65 mm	26.6
70 mm	30.8
75 mm	35.4
80 mm	40.2
85 mm	45.4
90 mm	50.9
100 mm	63.0
105 mm	68.0
110 mm	76.1
115 mm	83.1
120 mm	90.5
125 mm	96.3

DIA	KG/M
130 mm	106.0
135 mm	112.2
140 mm	123.0
150 mm	141
160 mm	161
170 mm	182
180 mm	204
190 mm	223
200 mm	251
220 mm	304
225 mm	319
230 mm	333
250 mm	385
280 mm	493
300 mm	566
325 mm	651
350 mm	772
375 mm	886
400 mm	1008
425 mm	1138
450 mm	1276
500 mm	1575
550 mm	1906
600 mm	2268
650 mm	2662

Hollow Bar Stock

OD MM	ID MM	WEIGHT KG/M
32	20	4,2
32	16	5,1
36	25	4,5
36	20	5,9
36	16	6,8
40	28	5,5
40	25	6,5
40	20	7,8
45	32	6,7
45	28	8,2
45	20	10,5
50	36	8
50	32	9,7
50	25	12,1
56	40	10,2
56	36	12,1
56	28	15,2
63	50	9,9
63	45	12,2
63	40	15,4
63	36	17,3
63	32	19
71	56	12,9
71	45	19,6
71	40	22,3
71	36	24,1
75	60	13,7
75	50	21,1
75	40	26
80	63	16,4
80	50	25,3
80	45	28,3
80	40	30,9
85	67	18,5
85	55	26,8
85	45	33,5
90	71	20,6
90	63	27,1
90	56	32,3
90	50	36,1
95	75	23
95	67	29,9
95	50	42,1
100	80	24,4
100	71	32,7
100	63	39,2
100	56	42,3
106	80	32,3
106	71	40,6
106	63	47,1
106	56	52,1
112	90	30,2
112	80	40,6
112	71	48,8
112	63	55,3
118	90	39
118	80	49,4
118	71	57,6
118	63	64,2
125	100	38,3
125	90	49,8
125	80	60,2
125	71	68,5
132	106	42
132	90	61,1
132	80	71,5
132	71	79,7
140	112	47,8
140	118	39
143,3	110,1	55
140	100	63,3
140	90	74,9
140	80	85,2
150	125	47,4
150	106	74,2
150	95	87,7
150	80	103,3
160	132	56,2
160	122	71,6
160	112	85,8
160	90	112,9
170	140	63,8
170	130	80,2
170	118	98,4
170	106	114,7
170	100	122,3
180	150	68,4
180	140	86,1
180	125	110
180	100	144,4
190	160	73
190	150	91,9
190	132	123
200	170	77,6
200	160	97,6
200	150	117
200	140	134
212	170	109
212	150	148
212	130	182
224	180	121
224	140	199
236	190	133
236	150	216
250	200	153
275	200	228

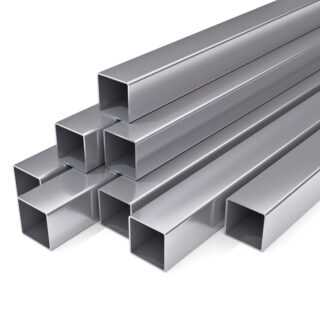

Hollow Section Stock

MEASUREMENTS	KG/M
20x20x1,5 mm	0.9
20x20x2 mm	1.2
25x25x2 mm	1.5
30x30x2 mm	1.8
30x30x3mm	2.6
40x40x2 mm	2.5
40x40x3 mm	3.6
40x40x4 mm	4.7
50x50x2 mm	3.1
50x50x3 mm	4.6
50x50x4 mm	6.
50x50x5 mm	7.3
60x60x2 mm	3.8
60x60x3 mm	5.5
60x60x4 mm	7.2
60x60x5 mm	8.9
80x50x3 mm	6.
80x80x3 mm	7.5
80x80x4 mm	9.9
80x80x5 mm	12.1
80x80x6 mm	14.3
100x50x3 mm	7.
100x50x5 mm	11.3
100x100x4 mm	12.4
100x100x5 mm	15.3
100x100x6 mm	18.1
120x120x6 mm	22.
150x150x6 mm	27.9

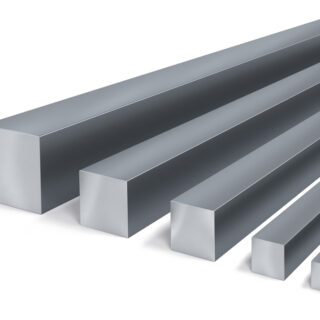

Squared Bar Stock

DIA KG/M

10 mm 0.8

12 mm 1.2

15 mm 1.8

20 mm 3.2

22 mm 3.8

25 mm 5.

30 mm 7.3

40 mm 12.8

50 mm 20.

60 mm 28.8

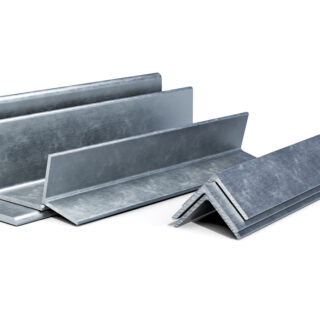

Angle Bar Stock

MEASUREMENTS	KG/M
20x20x3 mm	0.99
25x25x3 mm	1.14
30x30x3 mm	1.39
40x40x4 mm	2.51
50x50x5 mm	3.8
60x60x6 mm	5.53
70x70x7 mm	7.53
80x80x8 mm	9.85
90x90x9 mm	12.4
100x100x10 mm	15.4

Unequal Angle Stock

MEASUREMENTS KG/M

100 X 50 X 8 mm 9.6

150 X 75 X 10 mm 18.0

150 X 100 X 8 mm 15,79

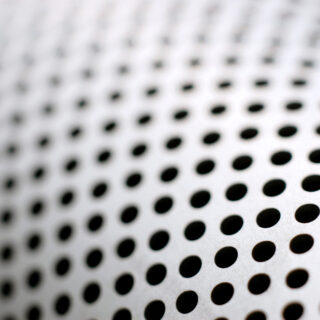

Perforated Plate Stock

MEASUREMENTS

0,7 x 1000 x 2000 mm dia. 3 mm

0,7 x 1000 x 2000 mm dia. 5 mm

1 x 1000 x 2000 mm dia. 3 mm

1 x 1000 x 2000 mm dia. 5 mm

1,5 x 1000 x 2000 mm dia. 5 mm

2 x 1000 x 2000 mm dia. 5 mm

Grinded Plate Stock

MEASUREMENTS KG/PLATE

3 x 1250 x 2500 mm 75,2

1,5 x 1250 x 2500 mm 37.5

1 x 1250 x 2500 mm 25.0

2 x 1250 x 2500 mm 50.0

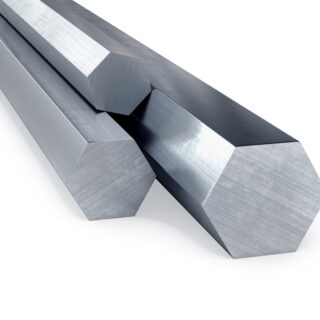

Hexagon Bar Stock

DIA	KG/M
11 mm	0.9
13 mm	1.2
14 mm	1.4
17 mm	2.
19 mm	2.5
22 mm	3.4
24 mm	4.
27 mm	5.1
30 mm	6.2
32 mm	7.
34 mm	8.
36 mm	9.
38 mm	9.9
41 mm	11.4
46 mm	14.4
50 mm	17.
55 mm	20.6
60 mm	24.5

Polished Tube Stock

MEASUREMENTS KG/M

1,5 x 22 mm 0.78

1×5 x 25 mm 0.89

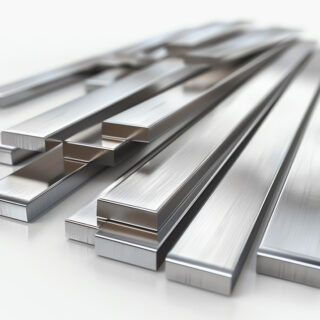

Flat Bar Stock

MEASUREMENTS	KG/M
20×3 mm	0.5
20×4 mm	0.7
20×5 mm	0.8
20×6 mm	1.
20×8 mm	1.3
20×10 mm	1.6
25×3 mm	0.6
25×4 mm	0.8
25×5 mm	1.
25×6 mm	1.2
25×8 mm	1.6
25×10 mm	2.
30×3 mm	0.8
30×4 mm	1.
30×5 mm	1.2
30×6 mm	1.5
30×8 mm	2.
30×10 mm	2.4
30×12 mm	2.9
30×15 mm	3.6
40×3 mm	0.9
40×4 mm	1.3
40×5 mm	1.6
40×6 mm	2.
40×8 mm	2.6
40×10 mm	3.2
40×12 mm	3.9
40×15 mm	4.8
40×20 mm	6.5
50×3 mm	1.2
50×5 mm	2.
50×6 mm	2.4
50×8 mm	3.2
50×10 mm	4.
50×12 mm	4.8
50×15 mm	6.
50×20 mm	8.
50×25 mm	10.1
60×5 mm	2.4
60×6 mm	2.9
60×8 mm	3.9
60×10 mm	4.8
60×12 mm	5.7
60×15 mm	7.2
60×20 mm	9.7
70×10 mm	5.6
70×20 mm	11.
75×6 mm	3.6
80×6 mm	3.9
80×8 mm	5.2
80×10 mm	6.5
80×12 mm	7.6
80×20 mm	12.9
100×6 mm	4.9
100×8 mm	6.4
100×10 mm	8.1
100×12 mm	9.7
100×15 mm	11.8
100×20 mm	16.
