EN 1.4539 / UNS N08904 / 904L

EN 1.4539 / UNS N08904 / 904L is a high nickel – molybdenum austenitic stainless steel with a very high corrosion resistance specifically for handling medium concentrated sulfuric acid solutions. Good weldability and excellent formability.

Non-magnetic in annealed condition.
High resistance to stress corrosion cracking.
Excellent formability and weldability.
Used where chloride stress corrosion cracking and acid corrosion are critical.

Applications
Areas of applications are process equipment in chemical industry, petrochemical industry, bleaching equipment in the pulp and paper industry, flue gas cleaning, desalination, seawater handling, hydrometallurgy, food and beverage, pharmaceuticals and heat excangers.

Chemical & Petrochemical Industry
- - Heat exchangers, piping, and pressure vessels for strong acids (e.g., sulfuric, phosphoric)
  - Storage tanks for aggressive chemicals
  - Reactors and columns in harsh chemical processes
Marine & Offshore
- - Seawater cooling systems
  - Ballast water systems and pump components
  - Offshore platform equipment exposed to chlorides
Desalination & Water Treatment
- - Reverse osmosis systems
  - Evaporators and brine heaters
  - Seawater intake and discharge piping
Pharmaceutical & Food Industry
- - Equipment for acidic or saline food processing
  - Pharmaceutical reactors and piping in aggressive cleaning environments
Flue Gas Cleaning & Environmental Systems
- - SO₂ scrubbers and absorbers
  - Components exposed to acidic condensates
Metallurgical & Fertilizer Industry
- - Equipment for handling phosphoric acid and other aggressive chemicals

Chemical Composition (Specific for Plates)

Element	Weight %
C (Carbon)	Max. 0.020
Mn (Manganese)	Max. 1.20
P (Phosphorus)	Max. 0.030
S (Sulfur)	Max. 0.010
Si (Silicon)	Max. 0.70
Cr (Chromium)	19.0 – 21.0
Ni (Nickel)	24.0 – 26.0
Mo (Molybdenum)	3.00 – 4.50
Cu (Copper)	1.20 – 2.00
N (Nitrogen)	Max. 0.50

Carbon (C)

Weight %: Max. 0.020

Manganese (Mn)

Weight %: Max. 1.20

Phosphorus (P)

Weight %: Max. 0.030

Sulfur (S)

Weight %: Max. 0.010

Silicon (Si)

Weight %: Max. 0.70

Chromium (Cr)

Weight %: 19.0 – 21.0

Nickel (Ni)

Weight %: 24.0 – 26.0

Molybdenum (Mo)

Weight %: 3.00 – 4.50

Copper (Cu)

Weight %: 1.20 – 2.00

Nitrogen (N)

Weight %: Max. 0.50

Reference Standards
General:
- PED 2014/68/EU Annex I section 4.3
- AD2000 W0 (W2/W10)
- NACE MR0175/ISO 15156-3 and NACE MR0103/ISO 17945
Plate, sheet and coil:
- ASTM A240, EN 10028-7, EN 10088-2, EN 10088-4
Bar and forging:
- ASTM A276, ASTM A479, ASTM A182, EN 10088-3
Other products:
- As per applicable ASTM and/or EN standards

Mechanical Properties (Typical)

Type	Yield strength Rp0.2 (MPa)	Yield strength Rp1.0 (MPa)	Tensile strength Rm (MPa)	Elongation (%)	Hardness [HB]
ASTM A240	≥ 230	–	520 – 720	≥ 35	≤ 90
PLATE CR (COIL)	≥ 240	≥ 270	530 – 730	≥ 35	≤ 90
PLATE HR (COIL)	≥ 220	≥ 260	530 – 730	≥ 35	≤ 90
PLATE (QUARTO)	≥ 220	≥ 260	520 – 720	≥ 35	≤ 90

ASTM A240

Yield strength Rp0.2 (MPa): ≥ 230

Yield strength Rp1.0 (MPa): –

Tensile strength Rm (MPa): 520 – 720

Elongation (%): ≥ 35

Hardness [HB]: ≤ 90

PLATE CR (COIL)

Yield strength Rp0.2 (MPa): ≥ 240

Yield strength Rp1.0 (MPa): ≥ 270

Tensile strength Rm (MPa): 530 – 730

Elongation (%): ≥ 35

Hardness [HB]: ≤ 90

PLATE HR (COIL)

Yield strength Rp0.2 (MPa): ≥ 220

Yield strength Rp1.0 (MPa): ≥ 260

Tensile strength Rm (MPa): 530 – 730

Elongation (%): ≥ 35

Hardness [HB]: ≤ 90

PLATE (QUARTO)

Yield strength Rp0.2 (MPa): ≥ 220

Yield strength Rp1.0 (MPa): ≥ 260

Tensile strength Rm (MPa): 520 – 720

Elongation (%): ≥ 35

Hardness [HB]: ≤ 90

Stocked products and dimensions

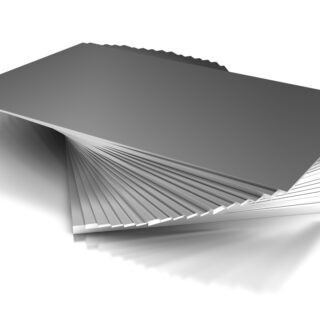

Plate

Plate (Thickness x Width x Length)	Weight (kg/plate)
0.5 x 1250 x 2500 mm	12.5
0.5 x 1500 x 3000 mm	18.0
0.7 x 1500 x 3000 mm	25.2
1.5 x 1500 x 3000 mm	54.0
1.5 x 1500 x 6000 mm	108.0
2 x 1500 x 3000 mm	72.0
2 x 1500 x 6000 mm	144.0
2 x 2000 x 6000 mm	192.0
3 x 1500 x 3000 mm	108.0
3 x 1500 x 6000 mm	216.0
3 x 2000 x 1000 mm	48.0
3 x 2000 x 4000 mm	192.0
3 x 2000 x 6000 mm	288.0
4 x 1500 x 3000 mm	144.0
4 x 1500 x 6000 mm	288.0
4 x 2000 x 1000 mm	64.0
4 x 2000 x 4000 mm	256.0
4 x 2000 x 6000 mm	384.0
5 x 1500 x 3000 mm	180.0
5 x 1500 x 6000 mm	360.0
5 x 2000 x 1000 mm	80.0
5 x 2000 x 4000 mm	320.0
5 x 2000 x 6000 mm	480.0
6 x 1500 x 3000 mm	216.0
6 x 1500 x 6000 mm	432.0
6 x 2000 x 1000 mm	96.0
6 x 2000 x 4000 mm	384.0
6 x 2000 x 6000 mm	576.0
8 x 1500 x 3000 mm	288.0
8 x 1500 x 6000 mm	576.0
8 x 2000 x 6000 mm	768.0
10 x 1500 x 3000 mm	360.0
10 x 1500 x 6000 mm	720.0
10 x 2000 x 6000 mm	960.0
12 x 1500 x 3000 mm	432.0
12 x 1500 x 6000 mm	864.0
12 x 2000 x 6000 mm	1152.0
15 x 1500 x 3000 mm	540.0
15 x 1500 x 6000 mm	1080.0
15 x 2000 x 6000 mm	1440.0
16 x 1500 x 3000 mm	576.0
16 x 1500 x 6000 mm	1152.0
16 x 2000 x 6000 mm	1536.0
20 x 1500 x 3000 mm	720.0
20 x 1500 x 6000 mm	1440.0
20 x 2000 x 6000 mm	1920.0
25 x 1500 x 3000 mm	900.0
25 x 1500 x 6000 mm	1800.0
25 x 2000 x 6000 mm	2400.0
30 x 1500 x 3000 mm	1080.0
30 x 1500 x 6000 mm	2160.0
30 x 2000 x 6000 mm	2880.0
40 x 1500 x 3000 mm	1440.0
40 x 1500 x 6000 mm	2880.0
40 x 2000 x 6000 mm	3840.0
50 x 1500 x 3000 mm	1800.0
50 x 1500 x 6000 mm	3600.0
50 x 2000 x 6000 mm	4800.0

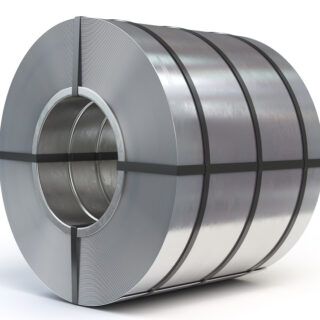

Coil

Coil (Thickness x Width)	Weight (kg/m)
0.5 x 1250 mm	5.0
0.7 x 1500 mm	8.4
1.25 x 1500 mm	15.0
1.5 x 1500 mm	18.0
2 x 1500 mm	24.0
3 x 1500 mm	36.0
3 x 2000 mm	48.0
4 x 1500 mm	48.0
4 x 2000 mm	64.0
5 x 1500 mm	60.0
5 x 2000 mm	80.0
6 x 1500 mm	72.0
6 x 2000 mm	96.0
